The Casita

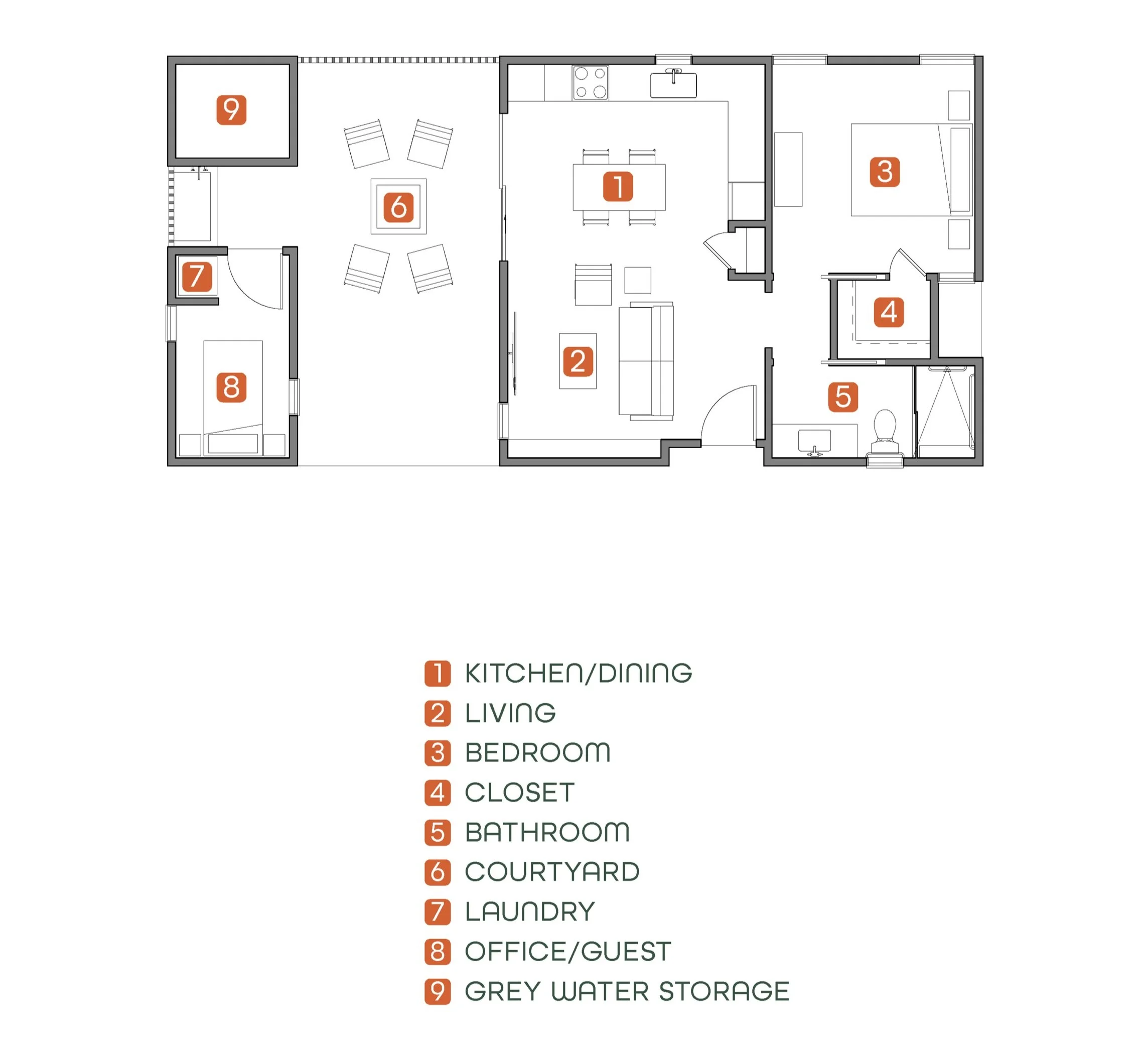

Floor Plan

A Contemporary Desert Retreat of Distinct Style

The Casita is a testament to architectural excellence, marrying the rustic charm of traditional adobe architecture with the sleek lines and luxurious features of a modern home. Its low-profile design harmonizes effortlessly with a desert landscape.

What’s Included:

Pricing Set:

• Basic Floor Plans and Exterior Elevations. Enough to plan and cost estimate your project.

Complete Set:

• Cover Sheet – general notes, a 3D image of the design, ideal solar orientation diagram

• Floor Plans – dimensioned and detailed floor plans, door and window schedules

• Exterior Elevations – detailed views of each side of the house with notes and dimensions

• Building Sections – cuts through the building in each direction, wall section details

• Interior Elevations – cabinet elevations and specialized wall designs

• Electrical & Lighting Plans – showing types of fixtures, circuitry and switch locations

• Specifications – major materials, fixtures, and equipment specs we recommend for the project

• Structural Engineering – framing plans, bracing and roof framing plans

What Else You Will Need:

Since every site is different you will need to hire a local structural engineer to design the foundation and perform inspections during construction. Unique soil conditions, topography and tree locations will influence the site planning and foundation design. Your general contractor should be able to recommend qualified engineers. You will also need to locate the building on your site plan and apply for a building permit from your local jurisdiction. We are available to provide site planning services and permits can be obtained through a permit expeditor or a local builder. For an additional fee we can make minor revisions to the designs. Minor revisions may include flipping the plans, moving a window, door, or a wall. Please reach out to us for an estimate for these services. Purchasing these plans gives you the right to build one house. This is a “single use” license. Please talk to us about purchasing the rights to a multi-unit license at a discounted fee.
